Milling Cutter

SOFTOOL manufacturing co., ltd. with good R&D and design capabilities, process production capacities, multiple automatic production lines

for steel products and advanced CNC machine tool equipment, is capable to undertake the production of cutting tool bodies and has its own brand

products. In order to adapt to the integration of global resources and minimize the machine tool investment and resource cost, SOFTOOL will

launch OEM/ODM cooperation with domestic and foreign tool partners to share our rich experience in manufacturing tool body products.

Through the perfect cooperation of the cutting tool body and inserts, the efficiency can be fully utilized and the customer benefit can be highly

improved. We are willing to build the bridge of cooperation with technology and sincerity. Our mission is to lead the healthy development for the

tool body industry, to expedite the industrial upgrades for the tooling companies.

SOFTOOL has rich experience and mature capabilities as follows in the OEM/ODM field:

1. Specific customization capacity：

(1) Insert positioning and design capacity- accurately determine the positioning of supporting surface and the insert contour according to the

insert entity provided by customers, and then design multiple types of milling tool products.

(2) Tool body shape optimization capacity: According to the tool entity provided by the customer, perform simulation analysis and provide the

better suggestion for the customer's tool body golden ratio.

2. Design capability：

(1) Insert pocket design- Based on the rich experience of cutting tools, we design a more reasonable and stable insert pocket

positioning method for customers according to the insert type, and provide long life of inserts and cutting tools.

(2) Milling cutter angle design- To different insert type and milling cutter type, the inserts’ position angle of design is different. The

angle design of our milling cutter can make the surface of the work-piece optimized and provide the better life.

SofTool : cutting surface after 1 hour of machining

A famous domestic brand: cutting surface after 1 hour of machining

(3) Cutter body design - we recommend a more reasonable layout for the customer's cutter head with rich experience in cutting tools.

                                             The unequal tooth design of the close-tooth cutter head.

                                             Reasonable number of wiper inserts.

3. Hardware: For all OEM/ODM Milling cutter orders, we use reinforced screws and wrenches of international premium brand.

(1) Screw：

(2) Wrench ：

4. Support capability：With many years of experience in the design and production of special tools, SofTool can provide strong

support for customers' technical support.

(1) Pre-sale support - Make reasonable suggestions for customers' projection of pre-sale orders. - Recommend optimized proposal

for customer’s models of OEM orders as reference.

(2) After-sales support- Provide technical support to customers when marketing products. -Provide strong support for product

upgrades advanced by customers later. (see case)

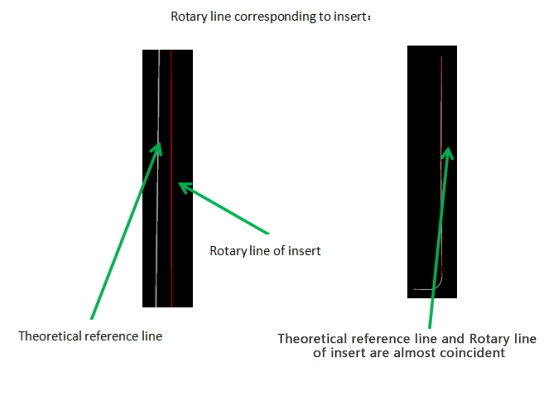

Case: An ODM customer has an upgrade requirement for the perpendicularity of the square shoulder milling insert.Therefore, it is

recommended that customers change the original straight insert to spiral insert.

Straight insert（before improvement）   Spiral insert（after improvement）

5. Manufacturing capacity：

(1) Machine tool - we all use the advanced five-axis machining center machine tools, relying on the milling cutter production

line with the participation of manipulators

(2) Process- All adopt the post-fire finishing process, which ensures the precision of the tool products

(3) Scope- The product range covers φ6-φ630mm milling cutter diameter.

(4) Accuracy- product runout can be kept within 0.015 mm, large diameter cutter runout can be controlled within 0.03 mm;

(5) Heat treatment –We have advanced heat treatment equipment to provide controllability for product stability and timely delivery.

6. Product cases developed：
