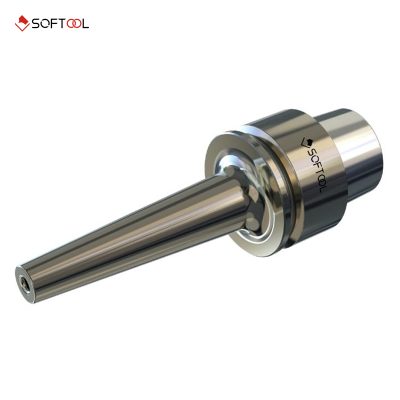

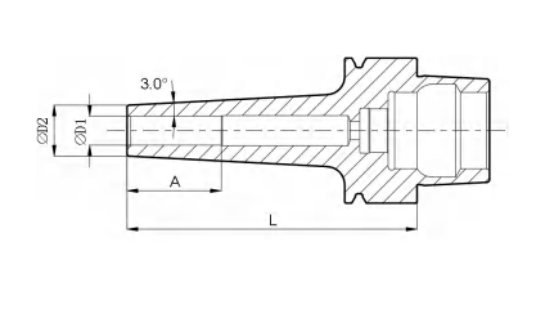

Home/Shrink-ft Chuck/Slim/BDMHSK40EST03070M 🔍 BDMHSK40EST03070M Suitable for high-speed cutting and deep cavity processing Low vibration Slender shape, good avoidance size Product Inquiry Description Additional Information Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm Specification Value Ordering Code BDMHSK40EST03070M Product Type Slim Coupling Type HSK40E Chuck Type Shrink-ft Chuck Clamping Hole Diameter 3 Effective Length 70 Format Metric D1 (mm) 3 D2 (mm) 9 D3 (mm) – L (mm) 70 A (mm) – Weight (kg) 0.22 Nozzle M12*1 Product Type Slim Coupling Type HSK40E Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 3 Effective Length 70 Format Metric D1 3 D2 9 L 70 Weight m (kg) 0.22 Nozzle M12*1 Related Products BGPBT30AST16080MShrink-ft Chuck, General Purpose BGPBT40AST03130M¹Shrink-ft Chuck, General Purpose BGPBT30AST12060M²Shrink-ft Chuck, General Purpose BGPBT40AST03120M¹Shrink-ft Chuck, General Purpose
Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm Specification Value Ordering Code BDMHSK40EST03070M Product Type Slim Coupling Type HSK40E Chuck Type Shrink-ft Chuck Clamping Hole Diameter 3 Effective Length 70 Format Metric D1 (mm) 3 D2 (mm) 9 D3 (mm) – L (mm) 70 A (mm) – Weight (kg) 0.22 Nozzle M12*1 Product Type Slim Coupling Type HSK40E Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 3 Effective Length 70 Format Metric D1 3 D2 9 L 70 Weight m (kg) 0.22 Nozzle M12*1
