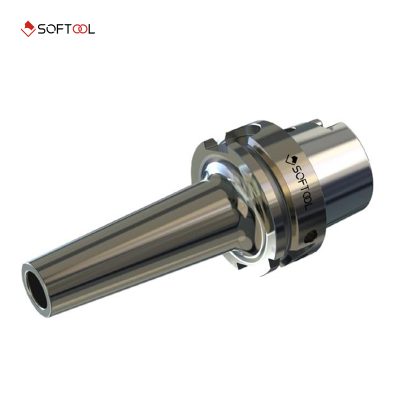

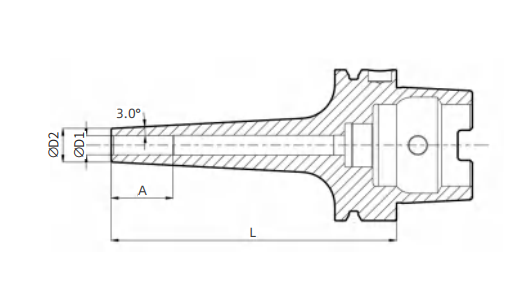

Home/Shrink-ft Chuck/Slim/BDMHSK63AST04120M 🔍 BDMHSK63AST04120M Suitable for high-speed cutting and deep cavity processing Low vibration Slender shape, good avoidance size Product Inquiry Description Additional Information Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm Specification Value Ordering Code BDMHSK63AST04120M Product Type Slim Coupling Type HSK63A Chuck Type Shrink-ft Chuck Clamping Hole Diameter 4 Effective Length 120 Format Metric D1 (mm) 4 D2 (mm) 10 D3 (mm) – L (mm) 120 A (mm) – Weight (kg) 0.75 Nozzle M18*1 Product Type Slim Coupling Type HSK63A Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 4 Effective Length 120 Format Metric D1 4 D2 10 L 120 Weight m (kg) 0.75 Nozzle M18*1 Related Products BGPBT30AST03060M¹Shrink-ft Chuck, General Purpose BGPBT30AST20090MShrink-ft Chuck, General Purpose BGPBT30AST12080M²Shrink-ft Chuck, General Purpose BGPBT30AST12060M²Shrink-ft Chuck, General Purpose
Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm Specification Value Ordering Code BDMHSK63AST04120M Product Type Slim Coupling Type HSK63A Chuck Type Shrink-ft Chuck Clamping Hole Diameter 4 Effective Length 120 Format Metric D1 (mm) 4 D2 (mm) 10 D3 (mm) – L (mm) 120 A (mm) – Weight (kg) 0.75 Nozzle M18*1 Product Type Slim Coupling Type HSK63A Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 4 Effective Length 120 Format Metric D1 4 D2 10 L 120 Weight m (kg) 0.75 Nozzle M18*1
