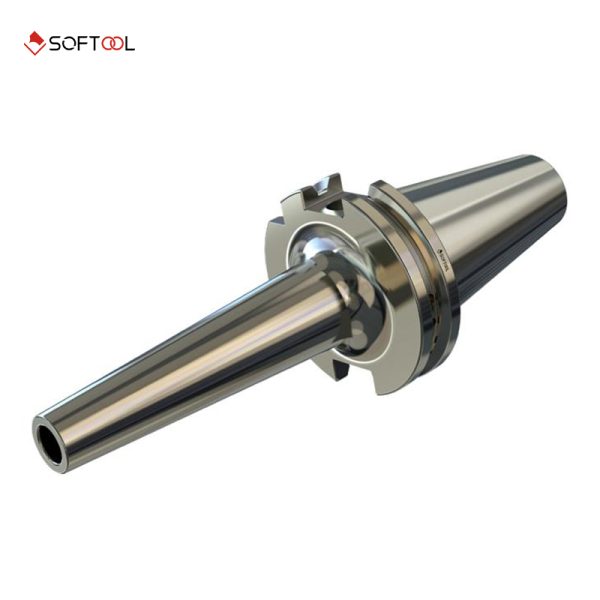

Home/Shrink-ft Chuck/Slim/BDMSK40AST06120M 🔍 BDMSK40AST06120M Suitable for high-speed cutting and deep cavity processing Low vibration Slender shape, good avoidance size Product Inquiry Description Additional Information Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm Specification Value Ordering Code BDMSK40AST06120M Product Type Slim Coupling Type SK40A Chuck Type Shrink-ft Chuck Clamping Hole Diameter 6 Effective Length 120 Format Metric D1 (mm) 6 D2 (mm) 12 D3 (mm) – L (mm) 120 A (mm) – Weight (kg) 0.97 Product Type Slim Coupling Type SK40A Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 6 Effective Length 120 Format Metric D1 6 D2 12 L 120 Weight m (kg) 0.97 Related Products BGPBT30AST03080M¹Shrink-ft Chuck, General Purpose BGPBT30AST18090MShrink-ft Chuck, General Purpose BGPBT40AST03130M¹Shrink-ft Chuck, General Purpose BGPBT30AST10080M²Shrink-ft Chuck, General Purpose
Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm Specification Value Ordering Code BDMSK40AST06120M Product Type Slim Coupling Type SK40A Chuck Type Shrink-ft Chuck Clamping Hole Diameter 6 Effective Length 120 Format Metric D1 (mm) 6 D2 (mm) 12 D3 (mm) – L (mm) 120 A (mm) – Weight (kg) 0.97 Product Type Slim Coupling Type SK40A Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 6 Effective Length 120 Format Metric D1 6 D2 12 L 120 Weight m (kg) 0.97
