  • The shrink-fit chuck has a thread balance hole, which can be direct-ly assembled with a balance screw for dynamic balance adjustment
  • Add cooling holes on the basis of general purpose type, the coolant can reach to the cutting edge directly, prolong tool life
  • ф3/ф4, with slits along the clamping bore forcooling form outside
  • Runout < 0.003mm
  • Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm
  • With adjustable axial length
Specification Value
Ordering Code BGCBT50AST32100M¹
Product Type General Purpose & Cool Jet
Coupling Type BT50A
Chuck Type Shrink-ft Chuck
Clamping Hole Diameter 32
Effective Length 100
Format Metric

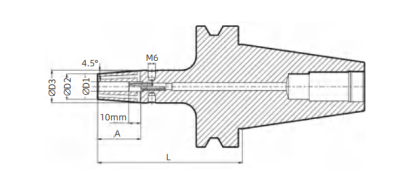

D1 (mm) 32
D2 (mm) 44
D3 (mm) 53
L (mm) 100
A (mm) 58
Coolant Set Screw M16
Weight (kg) 4.11
Product Type

General Purpose & Cool Jet
Coupling Type

BT50A
Flange Type

Automatic change tool with center cooling hole
Chuck Type

Shrink-ft Chuck
Clamping Hole Diameter

32
Effective Length

Format

Metric
D1

32
D2

44
D3

53
L

100
A

58
Coolant Set Screw

M16
Weight m (kg)

4.11
