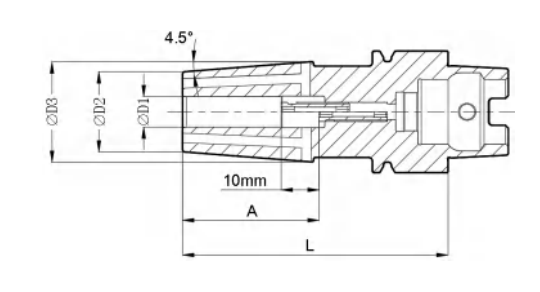

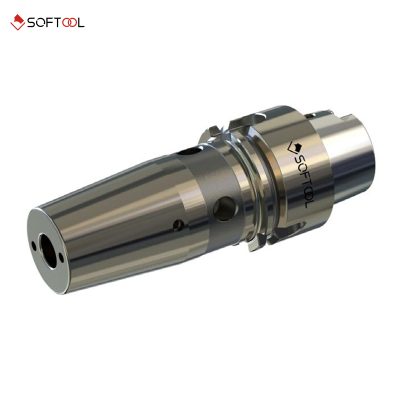

Home/Shrink-ft Chuck/General Purpose & Cool Jet/BGCHSK32AST06070M² 🔍 BGCHSK32AST06070M² The shrink-fit chuck has a thread balance hole, which can be direct-ly assembled with a balance screw for dynamic balance adjustment Add cooling holes on the basis of general purpose type, the coolant can reach to the cutting edge directly, prolong tool life ф3/ф4, with slits along the clamping bore forcooling form outside Product Inquiry Description Additional Information Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm With adjustable axial length Specification Value Ordering Code BGCHSK32AST06070M² Product Type General Purpose & Cool Jet Coupling Type HSK32A Chuck Type Shrink-ft Chuck Clamping Hole Diameter 6 Effective Length 70 Format Metric D1 (mm) 6 D2 (mm) 21 D3 (mm) 27 L (mm) 70 A (mm) 36 Coolant Set Screw M5 Weight (kg) 0.29 Product Type General Purpose & Cool Jet Coupling Type HSK32A Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 6 Effective Length 70 Format Metric D1 6 D2 21 D3 27 L 70 A 36.0 Coolant Set Screw M5 Weight m (kg) 0.29 Nozzle M10*1*1 Related Products BGPBT30AST08060M²Shrink-ft Chuck, General Purpose BGPBT30AST06060M²Shrink-ft Chuck, General Purpose BGPBT30AST10060M²Shrink-ft Chuck, General Purpose BGPBT40AST03120M¹Shrink-ft Chuck, General Purpose
