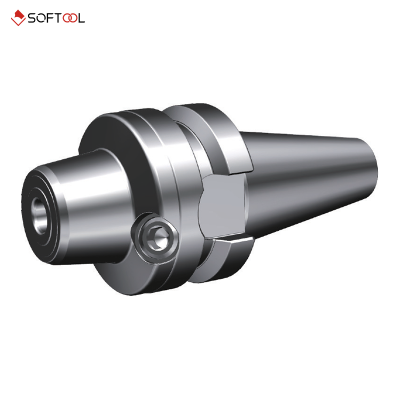

Home/Hydraulic Chuck/General Purpose/BGPBT30AHY12100M 🔍 BGPBT30AHY12100M For drilling, reaming, boring, milling, and other cutting machining Coupling type: BT/DB/HSK/SK/PSC Runout≤0.003mm at2.5D Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm Product Inquiry Description Additional Information Runout≤0.003mm at2.5D Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm With adjustable axial length Specification Value Ordering Code BGPBT30AHY12100M Product Type General Purpose Coupling Type BT30A Flange Type Automatic change tool with center cooling hole Chuck Type Hydraulic Chuck Clamping Hole Diameter 12 Effective Length 100 Format Metric D1 12 D2 32 D3 45.5 L1 100 L2 75.2 L3 59.1 L4 26 G M8*1 Weight m (kg) 0.97 Wrench Size SW5 Product Type General Purpose Coupling Type BT30A Flange Type Automatic change tool with center cooling hole Chuck Type Hydraulic Chuck Clamping Hole Diameter 12 Effective Length 100 Format Metric D1 12 D2 32 D3 45.5 L1 100 L2 75.2 L3 59.1 L4 26 G M8*1 Weight m (kg) 0.97 Wrench Size SW5 Related Products BGPBT30AHY06100MHydraulic Chuck, General Purpose BGPBT30AHY08050MHydraulic Chuck, General Purpose BGPBT30AHY08100MHydraulic Chuck, General Purpose BGPBT30AHY06050MHydraulic Chuck, High Torque
Runout≤0.003mm at2.5D Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm With adjustable axial length Specification Value Ordering Code BGPBT30AHY12100M Product Type General Purpose Coupling Type BT30A Flange Type Automatic change tool with center cooling hole Chuck Type Hydraulic Chuck Clamping Hole Diameter 12 Effective Length 100 Format Metric D1 12 D2 32 D3 45.5 L1 100 L2 75.2 L3 59.1 L4 26 G M8*1 Weight m (kg) 0.97 Wrench Size SW5 Product Type General Purpose Coupling Type BT30A Flange Type Automatic change tool with center cooling hole Chuck Type Hydraulic Chuck Clamping Hole Diameter 12 Effective Length 100 Format Metric D1 12 D2 32 D3 45.5 L1 100 L2 75.2 L3 59.1 L4 26 G M8*1 Weight m (kg) 0.97 Wrench Size SW5
