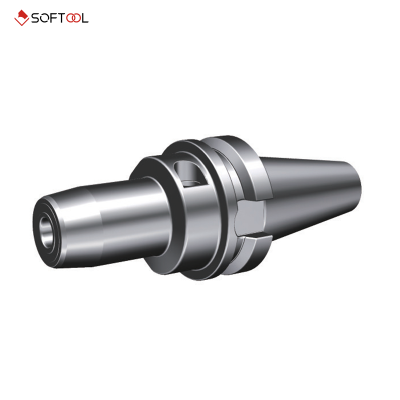

BGPBT40AHY06140M

BGPBT40AHY06140M

  • For drilling, reaming, boring, milling, and other cutting machining
  • Coupling type: BT/DB/HSK/SK/PSC
  • Runout≤0.003mm at2.5D
  • Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm
  • Runout≤0.003mm at2.5D
  • Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm
  • With adjustable axial length
Specification Value
Ordering Code BGPBT40AHY06140M
Product Type General Purpose
Coupling Type BT40A
Flange Type Automatic change tool with center cooling hole
Chuck Type Hydraulic Chuck
Clamping Hole Diameter 6
Effective Length 140
Format Metric
D1 6
D2 26
D3 52
L1 140
L2 113
L3 93.6
L4 26
G M5
Weight m (kg) 1.63
Wrench Size SW5
Product Type

General Purpose
Coupling Type

BT40A
Flange Type

Automatic change tool with center cooling hole
Chuck Type

Hydraulic Chuck
Clamping Hole Diameter

6
Effective Length

Format

Metric
D1

6
D2

26
D3

52.0
L1

140
L2

113.0
L3

93.6
L4

26
G

M5
Weight m (kg)

1.63
Wrench Size

SW5
