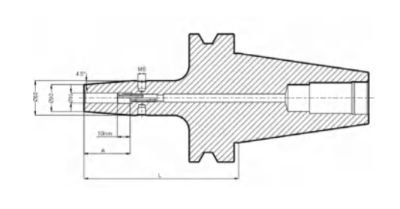

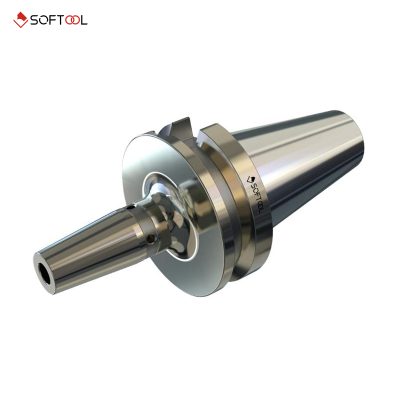

Home/Shrink-ft Chuck/General Purpose/BGPDB50AST12100M 🔍 BGPDB50AST12100M The shrink-fit chuck has a thread balance hole, which can be direct-ly assembled with a balance screw for dynamic balance adjustment For drilling, reaming, boring, milling, and other cutting machining Product Inquiry Description Additional Information Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm With adjustable axial length Specification Value Ordering Code BGPDB50AST12100M Product Type General Purpose Coupling Type DB50A Chuck Type Shrink-ft Chuck Clamping Hole Diameter 12 Effective Length 100 Format Metric D1 (mm) 12 D2 (mm) 24 D3 (mm) 32 L (mm) 100 A (mm) 47 Coolant Set Screw M8 Weight (kg) 3.89 Product Type General Purpose Coupling Type DB50A Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 12 Effective Length 100 Format Metric D1 12 D2 24 D3 32 L1 100 A 47 Coolant Set Screw M8 Weight m (kg) 3.89 Related Products BGPBT30AST10080M²Shrink-ft Chuck, General Purpose BGPBT40AST03130M¹Shrink-ft Chuck, General Purpose BGPBT30AST08060M²Shrink-ft Chuck, General Purpose BGPBT30AST03080M¹Shrink-ft Chuck, General Purpose
