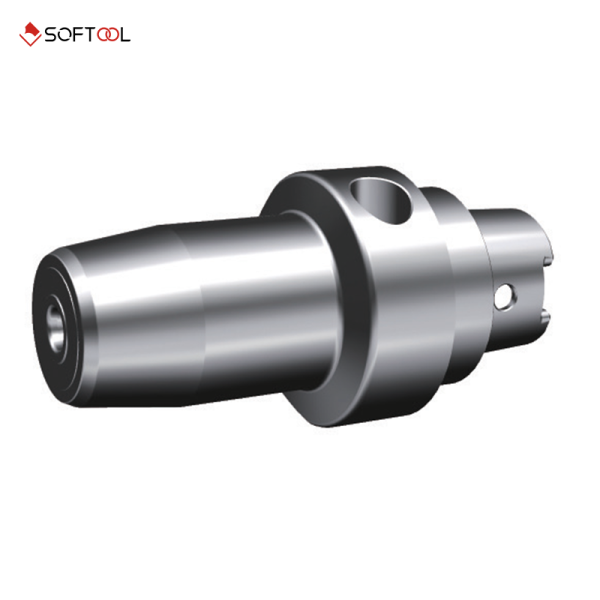

BGPHSK32CHY10070M

BGPHSK32CHY10070M

  • For drilling, reaming, boring, milling, and other cutting machining
  • Coupling type: BT/DB/HSK/SK/PSC
  • Runout≤0.003mm at2.5D
  • Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm
  • Runout≤0.003mm at2.5D
  • Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm
  • With adjustable axial length
Specification Value
Ordering Code BGPHSK32CHY10070M
Product Type General Purpose
Coupling Type HSK32C
Flange Type Manual change toolwith center cooling hole
Chuck Type Hydraulic Chuck
Clamping Hole Diameter 10
Effective Length 70
Format Metric

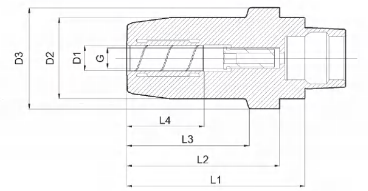

D1 (mm) 10
D2 (mm) 30
D3 (mm) 32
L1 (mm) 70
L2 (mm) 36.7
L3 (mm) 36.7
L4 (mm) 30
G M8*1
Weight (kg) 0.43
Wrench Size SW4
Product Type

General Purpose
Coupling Type

HSK32C
Flange Type

Manual change toolwith center cooling hole
Chuck Type

Hydraulic Chuck
Clamping Hole Diameter

10
Effective Length

Format

Metric
D1

10
D2

30
D3

32
L1

70
L2

36.7
L3

36.7
L4

30
G

M8*1
Weight m (kg)

0.43
Wrench Size

SW4
