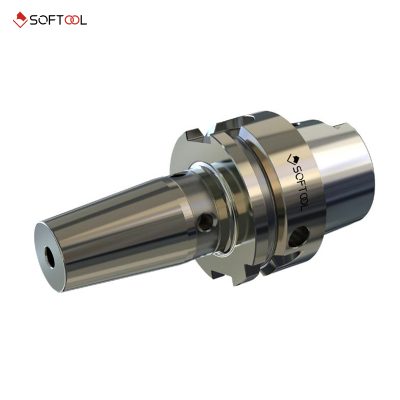

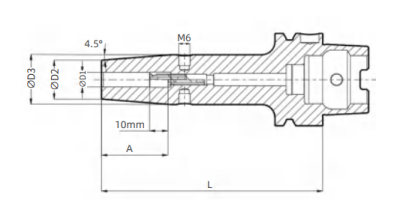

Home/Shrink-ft Chuck/General Purpose/BGPHSK50AST03060M¹ 🔍 BGPHSK50AST03060M¹ The shrink-fit chuck has a thread balance hole, which can be direct-ly assembled with a balance screw for dynamic balance adjustment For drilling, reaming, boring, milling, and other cutting machining Product Inquiry Description Additional Information Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm With adjustable axial length Specification Value Ordering Code BGPHSK50AST03060M¹ Product Type General Purpose Coupling Type HSK50A Chuck Type Shrink-ft Chuck Clamping Hole Diameter 3 Effective Length 60 Format Metric D1 (mm) 3 D2 (mm) 10 D3 (mm) L (mm) 60 A (mm) 9.5 Coolant Set Screw Nozzle M16*1 Weight (kg) 0.41 Product Type General Purpose Coupling Type HSK50A Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 3 Effective Length 60 Format Metric D1 3 D2 10 L1 60 A 9.5 Weight m (kg) 0.41 Nozzle M16*1 Related Products BGPBT30AST08060M²Shrink-ft Chuck, General Purpose BGPBT40AST03130M¹Shrink-ft Chuck, General Purpose BGPBT30AST14065M²Shrink-ft Chuck, General Purpose BGPBT30AST06060M²Shrink-ft Chuck, General Purpose
