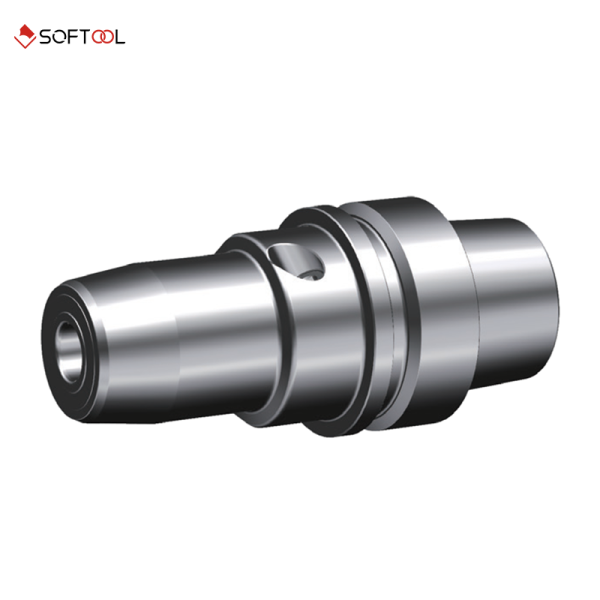

BGPHSK50EHY10075M

BGPHSK50EHY10075M

  • For drilling, reaming, boring, milling, and other cutting machining
  • Coupling type: BT/DB/HSK/SK/PSC
  • Runout≤0.003mm at2.5D
  • Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm
  • Runout≤0.003mm at2.5D
  • Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm
  • With adjustable axial length
Specification Value
Ordering Code BGPHSK50EHY10075M
Product Type General Purpose
Coupling Type HSK50E
Flange Type Automatic change tool without positioning slot
Chuck Type Hydraulic Chuck
Clamping Hole Diameter 10
Effective Length 75
Format Metric
D1 (mm) 10
D2 (mm) 30
D3 (mm) 41.8
L1 (mm) 75
L2 (mm) 49
L3 (mm) 31.0
L4 (mm) 30
G M8*1
Weight (kg) 0.73
Wrench Size SW5
Nozzle M16×1
Product Type

General Purpose
Coupling Type

HSK50E
Flange Type

Automatic change tool without positioning slot
Chuck Type

Hydraulic Chuck
Clamping Hole Diameter

10
Effective Length

Format

Metric
D1

10
D2

30
D3

41.8
L1

75
L2

49
L3

31.0
L4

30
G

M8*1
Weight m (kg)

0.73
Wrench Size

SW5
Nozzle

M16×1
