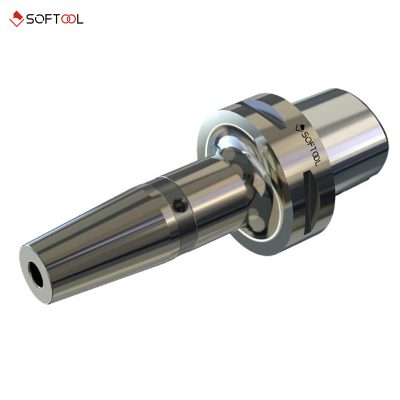

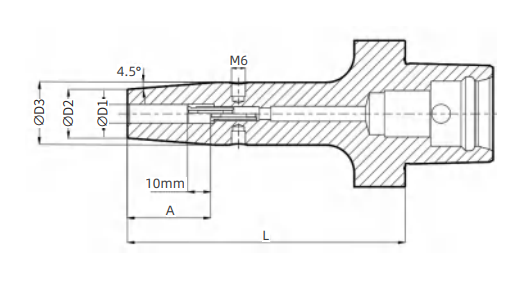

Home/Shrink-ft Chuck/General Purpose/BGPPSC63AST20100M 🔍 BGPPSC63AST20100M The shrink-fit chuck has a thread balance hole, which can be direct-ly assembled with a balance screw for dynamic balance adjustment For drilling, reaming, boring, milling, and other cutting machining Product Inquiry Description Additional Information Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm With adjustable axial length Specification Value Ordering Code BGPPSC63AST20100M Product Type General Purpose Coupling Type PSC63A Chuck Type Shrink-ft Chuck Clamping Hole Diameter 20 Effective Length 100 Format Metric D1 (mm) 20 D2 (mm) 33 D3 (mm) 42 L (mm) 100 A (mm) 52 Coolant Set Screw M12 Weight (kg) 1.3 Product Type General Purpose Coupling Type PSC63A Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 20 Effective Length 100 Format Metric D1 20 D2 33 D3 42 L1 100 A 52.0 Coolant Set Screw M12 Weight m (kg) 1.3 Related Products BGPBT40AST04090M¹Shrink-ft Chuck, General Purpose BGPBT30AST18090MShrink-ft Chuck, General Purpose BGPBT30AST04080M¹Shrink-ft Chuck, General Purpose BGPBT30AST10080M²Shrink-ft Chuck, General Purpose
Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm With adjustable axial length Specification Value Ordering Code BGPPSC63AST20100M Product Type General Purpose Coupling Type PSC63A Chuck Type Shrink-ft Chuck Clamping Hole Diameter 20 Effective Length 100 Format Metric D1 (mm) 20 D2 (mm) 33 D3 (mm) 42 L (mm) 100 A (mm) 52 Coolant Set Screw M12 Weight (kg) 1.3 Product Type General Purpose Coupling Type PSC63A Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 20 Effective Length 100 Format Metric D1 20 D2 33 D3 42 L1 100 A 52.0 Coolant Set Screw M12 Weight m (kg) 1.3
