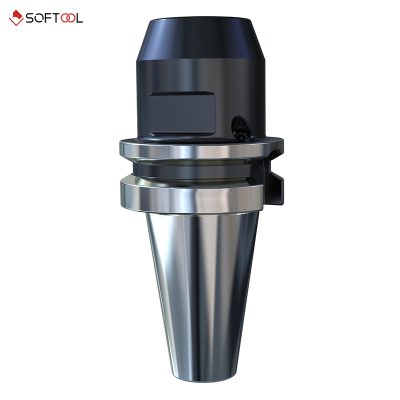

BHQBT30AHY20090M

BHQBT30AHY20090M

For rough machining of materials with heavy load
The torque can be up to 900Nm
Runout≤0.003mm at2.5D
Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm

Product Inquiry

Description
Additional Information

Runout≤0.003mm at2.5D
Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm
With adjustable axial length

Specification	Value
Ordering Code	BHQBT30AHY20090M
Product Type	Hich Toraue
Coupling Type	BT30A
Chuck Type	Hydraulic Chuck
Clamping Hole Diameter	20
Effective Length	90
Format	Metric

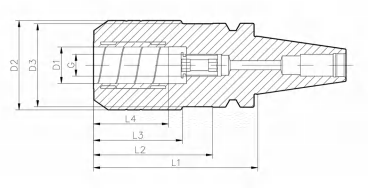

D1 (mm)	20
D2 (mm)	49
D3 (mm)	45.5
L1 (mm)	90
L2 (mm)	65.2
L3 (mm)	47
L4 (mm)	41
G	M12*1
Weight (kg)	1.16
Wrench Size	SW5

Product Type	Hich Toraue
Coupling Type	BT30A
Flange Type	Manual change toolwith center cooling hole
Chuck Type	Hydraulic Chuck
Clamping Hole Diameter	20
Effective Length	90
Format	Metric
D1	20
D2	49
D3	45.5
L1	90
L2	65.2
L3	47
L4	41
G	M12*1
Weight m (kg)	1.16
Wrench Size	SW5
