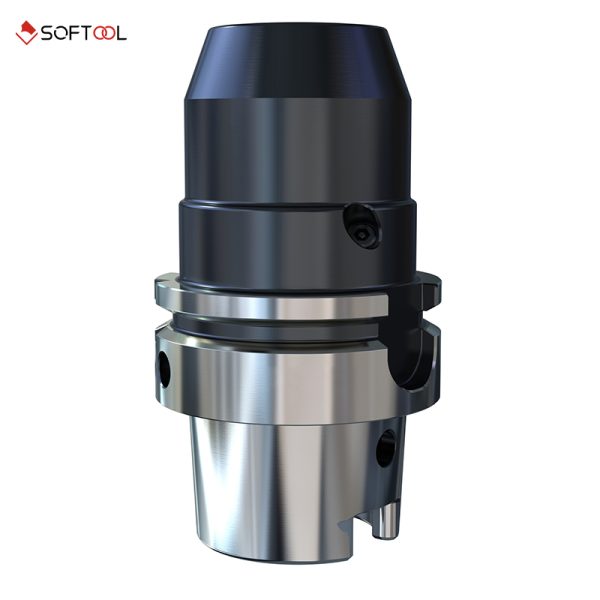

BHQHSK63AHY16080M

BHQHSK63AHY16080M

For rough machining of materials with heavy load
The torque can be up to 900Nm
Runout≤0.003mm at2.5D
Balancing Grade: G2.5 at 25,000 rpm or Umax <1g.mm

Product Inquiry

Description
Additional Information

Runout≤0.003mm at2.5D
Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm
With adjustable axial length

Specification	Value
Ordering Code	BHQHSK63AHY16080M
Product Type	Hich Toraue
Coupling Type	HSK63A
Chuck Type	Hydraulic Chuck
Clamping Hole Diameter	16
Effective Length	80
Format	Metric
D1 (mm)	16
D2 (mm)	49
D3 (mm)	51.8
L1 (mm)	80
L2 (mm)	54
L3 (mm)	36.8
L4 (mm)	40
G	M12×1
Nozzle	M18×1
Weight (kg)	1.28
Wrench Size	SW5

Product Type	Hich Toraue
Coupling Type	HSK63A
Flange Type	Manual change toolwith center cooling hole
Chuck Type	Hydraulic Chuck
Clamping Hole Diameter	16
Effective Length	80
Format	Metric
D1	16
D2	49
D3	51.8
L1	80
L2	54
L3	36.8
L4	40
G	M12×1
Weight m (kg)	1.28
Wrench Size	SW5
Nozzle	M18×1
