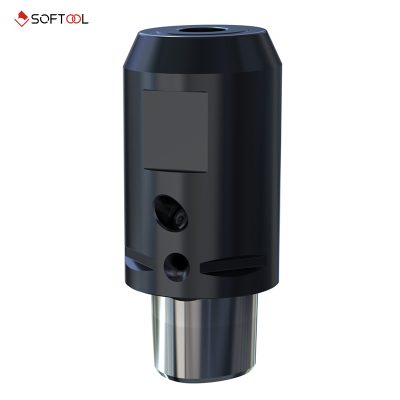

BHQPSC40AHY12065M<sup>1</sup>

BHQPSC40AHY12065M¹

For rough machining of materials with heavy load
The torque can be up to 900Nm
Runout≤0.003mm at2.5D
Balancing Grade: G2.5 at 25,000 rpm or Umax <1g.mm

Product Inquiry

Description
Additional Information

Runout≤0.003mm at2.5D
Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm
With adjustable axial length

Specification	Value
Ordering Code	BHQPSC40AHY12065M¹
Product Type	Hich Toraue
Coupling Type	PSC40A
Chuck Type	Hydraulic Chuck
Clamping Hole Diameter	12
Effective Length	65
Format	Metric
D1 (mm)	12
D2 (mm)	40.0
D3 (mm)	40.0
L1 (mm)	65
L2 (mm)	–
L3 (mm)	–
L4 (mm)	36
G	–
Weight (kg)	0.62
Wrench Size	SW5

Product Type	Hich Toraue
Coupling Type	PSC40A
Flange Type	Manual change toolwith center cooling hole
Chuck Type	Hydraulic Chuck
Clamping Hole Diameter	12
Effective Length	65
Format	Metric
D1	12
D2	40.0
D3	40.0
L1	65
L2	–
L3	–
L4	36
G	–
Weight m (kg)	0.62
Wrench Size	SW5
