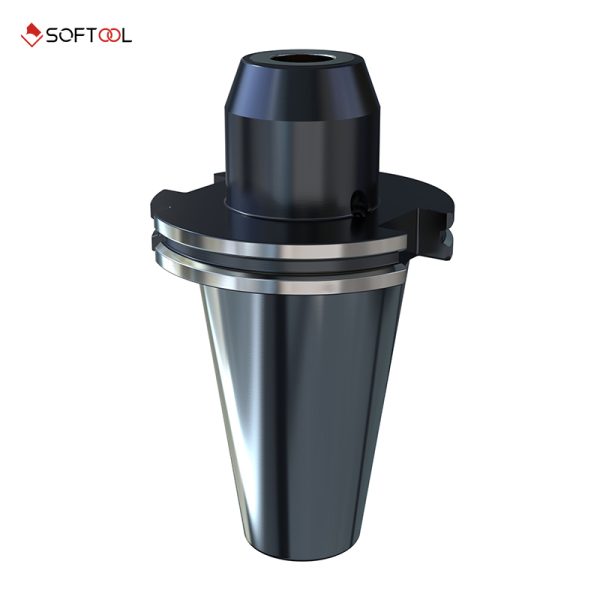

BHQSK50AHY12050M

BHQSK50AHY12050M

For rough machining of materials with heavy load
The torque can be up to 900Nm
Runout≤0.003mm at2.5D
Balancing Grade: G2.5 at 25,000 rpm or Umax <1g.mm

Product Inquiry

Description
Additional Information

Runout≤0.003mm at2.5D
Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm
With adjustable axial length

Specification	Value
Ordering Code	BHQSK50AHY12050M
Product Type	Hich Toraue
Coupling Type	SK50A
Chuck Type	Hydraulic Chuck
Clamping Hole Diameter	12
Effective Length	50
Format	Metric
D1 (mm)	12
D2 (mm)	42
D3 (mm)	42
L1 (mm)	50
L2 (mm)	30.9
L3 (mm)	30.9
L4 (mm)	36
G	M8*1
Weight (kg)	2.88
Wrench Size	SW5

Product Type	Hich Toraue
Coupling Type	SK50A
Flange Type	Manual change toolwith center cooling hole
Chuck Type	Hydraulic Chuck
Clamping Hole Diameter	12
Effective Length	50
Format	Metric
D1	12
D2	42
D3	42
L1	50
L2	30.9
L3	30.9
L4	36
G	M8*1
Weight m (kg)	2.88
Wrench Size	SW5
