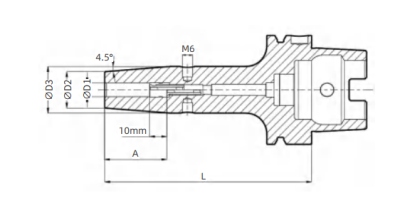

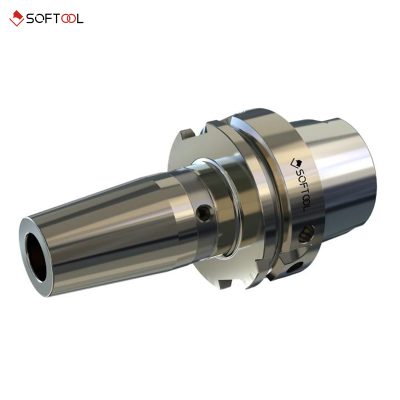

Home/Shrink-ft Chuck/General Purpose & Safe Lock/BSCHSK63AST20100M 🔍 BSCHSK63AST20100M The shrink-fit chuck has a thread balance hole, which can be direct-ly assembled with a balance screw for dynamic balance adjustment Add safe lock structure on the basis of general purpose type, suit-able for cutting difficult-to-machine materials Withstand high torque Higher metal removal rate Product Inquiry Description Additional Information Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm With adjustable axial length Specification Value Ordering Code BSCHSK63AST20100M Product Type General Purpose & Safe Lock Coupling Type HSK63A Chuck Type Shrink-ft Chuck Clamping Hole Diameter 20 Effective Length 100 Format Metric D1 (mm) 20 D2 (mm) 33 D3 (mm) 42 L (mm) 100 A (mm) 48 Coolant Set Screw M12 Weight (kg) 1.10 Nozzle M18*1 Product Type General Purpose & Safe Lock Coupling Type HSK63A Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 20 Effective Length 100 Format Metric D1 20 D2 33 D3 42 L 100 A 48 Coolant Set Screw M12 Weight m (kg) 1.10 Nozzle M18*1 Related Products BGPBT30AST16065M²Shrink-ft Chuck, General Purpose BGPBT30AST03080M¹Shrink-ft Chuck, General Purpose BGPBT30AST10080M²Shrink-ft Chuck, General Purpose BGPBT30AST18070M²Shrink-ft Chuck, General Purpose
Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm With adjustable axial length Specification Value Ordering Code BSCHSK63AST20100M Product Type General Purpose & Safe Lock Coupling Type HSK63A Chuck Type Shrink-ft Chuck Clamping Hole Diameter 20 Effective Length 100 Format Metric D1 (mm) 20 D2 (mm) 33 D3 (mm) 42 L (mm) 100 A (mm) 48 Coolant Set Screw M12 Weight (kg) 1.10 Nozzle M18*1 Product Type General Purpose & Safe Lock Coupling Type HSK63A Flange Type Automatic change tool with center cooling hole Chuck Type Shrink-ft Chuck Clamping Hole Diameter 20 Effective Length 100 Format Metric D1 20 D2 33 D3 42 L 100 A 48 Coolant Set Screw M12 Weight m (kg) 1.10 Nozzle M18*1
