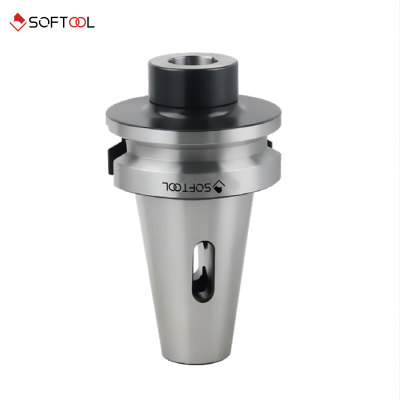

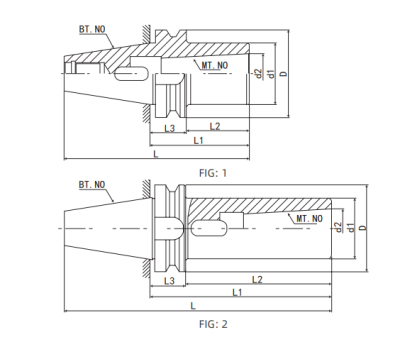

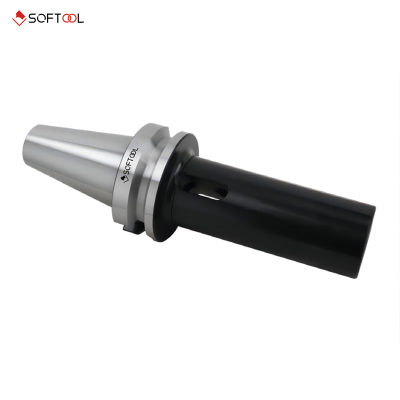

Home/General Tool Holder/BT Chuck Series/BT40-MTA4-165 🔍 BT40-MTA4-165 Product Inquiry Description Additional Information Specification Value Shank size BT40 功能代号 MTA 莫氏锥度号 4 Effective Length 165 FIG 2 L 230.4 L1 165 L2 138 L3 27 D 63 d1 48 d2 31.267 Clamping Range Φ32−Φ50 Weight (kg) 2.5 Shank size BT40 功能代号 MTA 莫氏锥度号 4 Effective Length 165 Fig 2 L 230.4 L1 165 L2 138 L3 27 D 63 d1 48 d2 31.267 Clamping Range Φ32−Φ50 Weight m (kg) 2.5 Related Products BT30-C20-90General Tool Holder, BT Chuck Series BT40-C20-90General Tool Holder, BT Chuck Series BT30-C32-105General Tool Holder, BT Chuck Series BT40-C32-105General Tool Holder, BT Chuck Series
Specification Value Shank size BT40 功能代号 MTA 莫氏锥度号 4 Effective Length 165 FIG 2 L 230.4 L1 165 L2 138 L3 27 D 63 d1 48 d2 31.267 Clamping Range Φ32−Φ50 Weight (kg) 2.5 Shank size BT40 功能代号 MTA 莫氏锥度号 4 Effective Length 165 Fig 2 L 230.4 L1 165 L2 138 L3 27 D 63 d1 48 d2 31.267 Clamping Range Φ32−Φ50 Weight m (kg) 2.5
