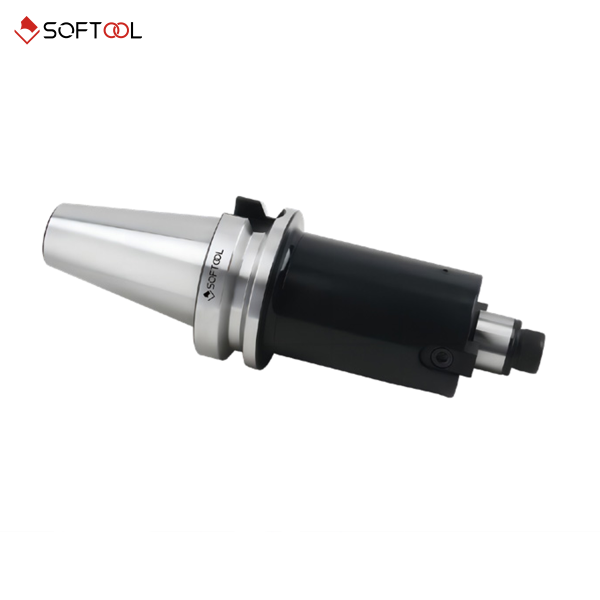

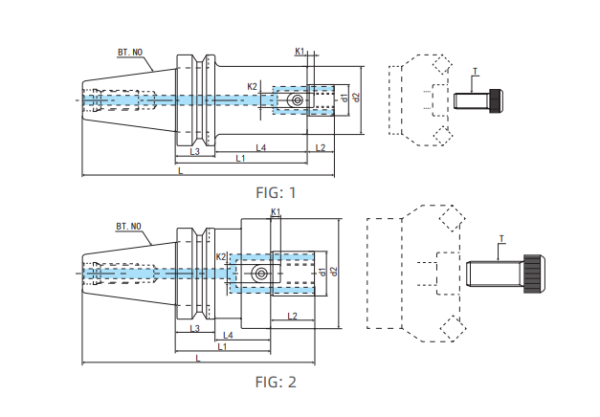

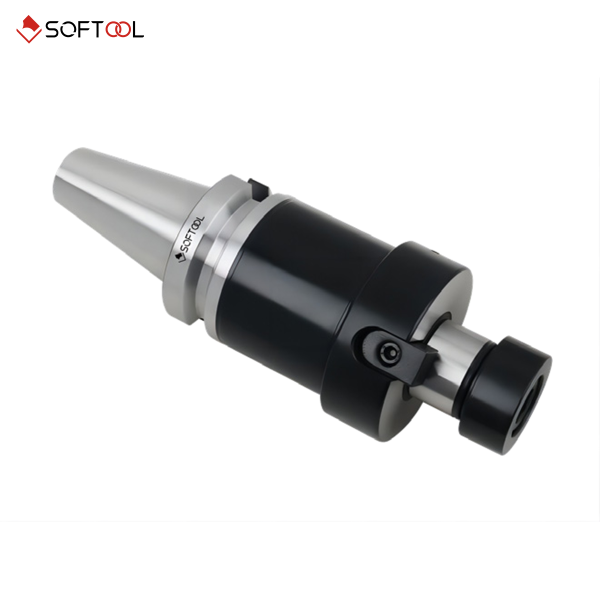

Home/General Tool Holder/BT Chuck Series/BT50-FMH22-500 🔍 BT50-FMH22-500 Product Inquiry Description Additional Information Specification Value Shank size BT50 功能代号 FMH 接口直径 22 Effective Length 500 L1 500 L 619.8 L2 18 L3 38 L4 462 d1 22 d2 48-60 K1 4.8 K2 10 M M10*1.5P FIG 1 Weight (kg) 11.20/15.60 Shank size BT50 功能代号 FMH 接口直径 22 Effective Length 500 L1 500 L 619.8 L2 18 L3 38 L4 462 d1 22 d2 48-60 K1 4.8 K2 10 M M10*1.5P Fig 1 Weight m (kg) 11.20/15.60 Related Products BT30-ER11-100General Tool Holder, BT Chuck Series BT50-C42-165General Tool Holder, BT Chuck Series BT40-C32-200General Tool Holder, BT Chuck Series BT50-C32-200General Tool Holder, BT Chuck Series
Specification Value Shank size BT50 功能代号 FMH 接口直径 22 Effective Length 500 L1 500 L 619.8 L2 18 L3 38 L4 462 d1 22 d2 48-60 K1 4.8 K2 10 M M10*1.5P FIG 1 Weight (kg) 11.20/15.60 Shank size BT50 功能代号 FMH 接口直径 22 Effective Length 500 L1 500 L 619.8 L2 18 L3 38 L4 462 d1 22 d2 48-60 K1 4.8 K2 10 M M10*1.5P Fig 1 Weight m (kg) 11.20/15.60
