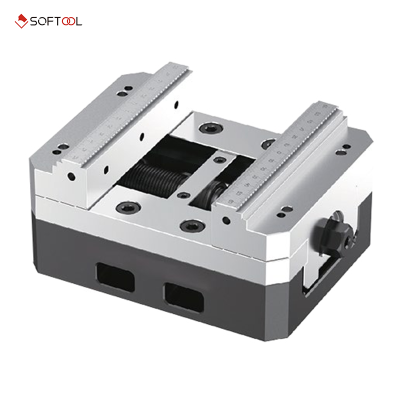

BZ400-EMS-150100
Material: Hardened steel,surface and rail hardening treatment,stable structure
Manual operation, no additional power source required, simple to operate
Stable clamping with precise fit, reducing the up-and-down movement of the jaws
| Specification | Value |
|---|---|
| Ordering Code | BZ400-EMS-150100 |
| Product Type | Self-Centering Vise |
| Vise | Economical |
| Power Menthod | Manual |
| Number of Stations | Single |
| Vise Length | 150 mm |
| Vise Width | 100 mm |
| Locking force | 20KN |
| Positive and negative clamping | 0-80 / 57-120 |
| Max torque | 75Nm |
| Weight (kg) | 5.5 |
| Product Type | Self-Centering Vise |
|---|---|
| Vise | Economical |
| Power Menthod | Manual |
| Number of Stations | Single |
| Vise Length | 150 mm |
| Vise Width | 100 mm |
| Locking force | 20KN |
| Positive and negative clamping | 0-80 / 57-120 |
| Max torque | 75Nm |
| Weight m (kg) | 5.5 |
