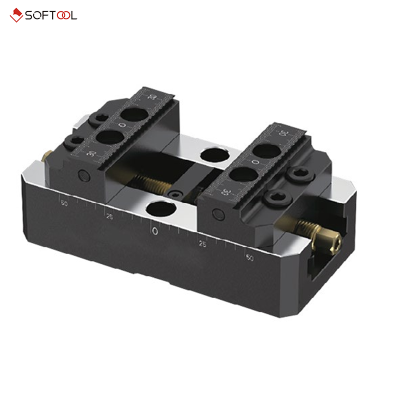

BZ400-PMS-150075
Repeated positioning accuracy <0.01mm
Material: Hardened steel,surface and rail hardening treatment,stable structure
Manual operation, no additional power source required, simple to operate
| Specification | Value |
|---|---|
| Ordering Code | BZ400-PMS-150075 |
| Product Type | Self-Centering Vise |
| Vise | Precise |
| Power Menthod | Manual |
| Number of Stations | Single |

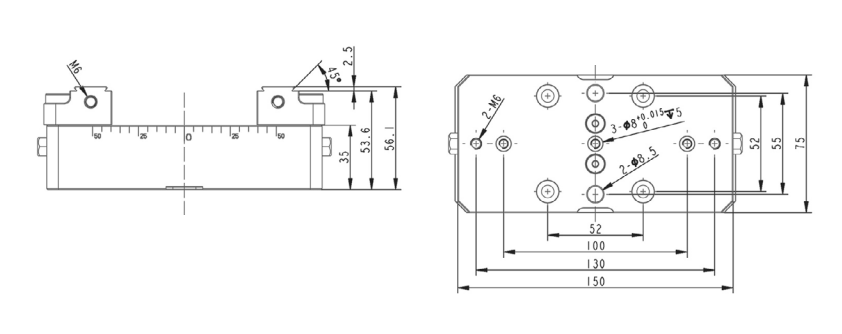

| Vise Length | 150 mm |
| Vise Width | 75 mm |
| Locking force | 14KN |
| Positive and negative clamping | 0-90 / 41-126 |
| Max torque | 60Nm |
| Weight (kg) | 3 |
| Product Type | Self-Centering Vise |
|---|---|
| Vise | Precise |
| Power Menthod | Manual |
| Number of Stations | Single |
| Vise Length | 150 mm |
| Vise Width | 75 mm |
| Locking force | 14KN |
| Positive and negative clamping | 0-90 / 41-126 |
| Max torque | 60Nm |
| Weight m (kg) | 3 |
