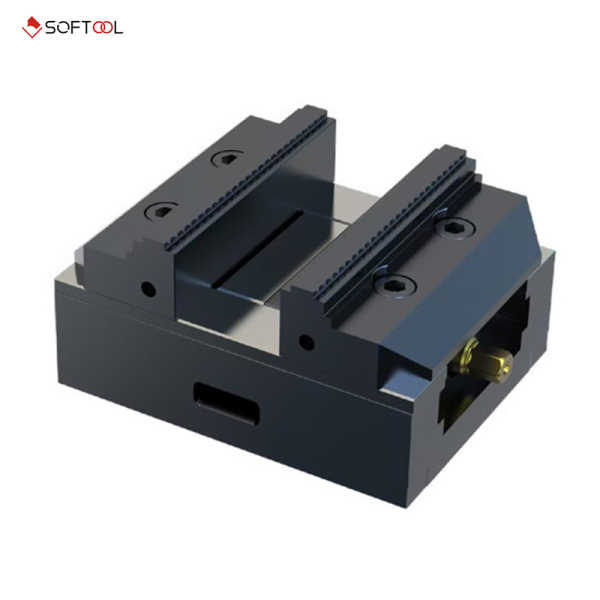

BZ400-PMS-480160
Repeated positioning accuracy <0.01mm
Material: Hardened steel,surface and rail hardening treatment,stable structure
Manual operation, no additional power source required, simple to operate
The screw shaft is concealed internally, effectively preventing chip ingress and reducing maintenance costs
Suitable for machining centers and surface grinding machines
| Specification | Value |
|---|---|
| Ordering Code | BZ400-PMS-480160 |
| Product Type | Self-Centering Vise |
| Vise | Precise |
| Power Menthod | Manual |
| Number of Stations | Single |
| Vise Length | 480 mm |
| Vise Width | 160 mm |
| Locking force | 50KN |
| Positive and negative clamping | 8-348 / 135-462 |
| Max torque | 175Nm |
| Weight (kg) | 38.2 |

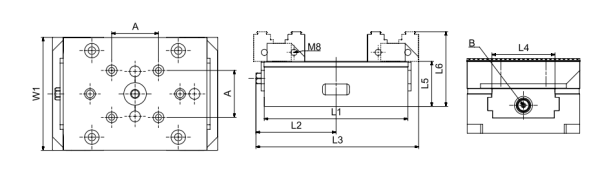

| A | 50 |
| B | 14 |
| L1 | 480 |
| W1 | 160 |
| L2 | 276 |
| L3 | 524 |
| L4 | 86 |
| L5 | 70 |
| L6 | 720 |
