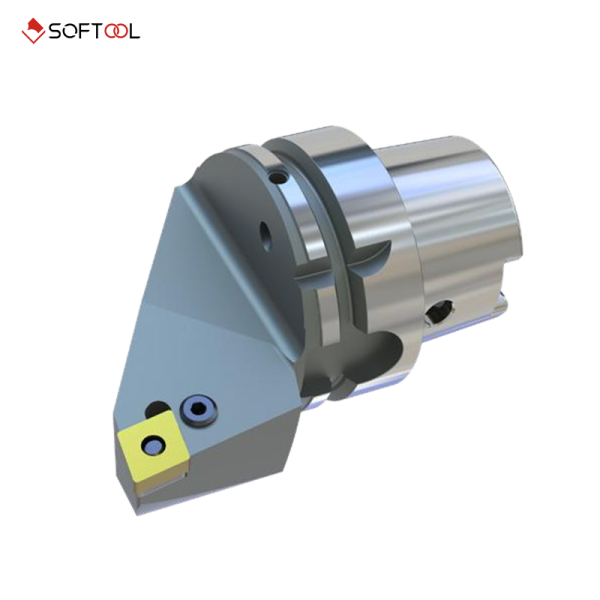

HSK-T100-PCLNR-68120-19
● For turning the external of the workpiece
● Three clamping types, available in rough machiningsemi-finishing , finishing machining
● Out-machine tool adjustment, can be used inautomatic mechanical equipment
● 通配市面上ISO标准刀片
● Support non-standardcustomization
| Specification | Value |
|---|---|
| Ordering Code | HSK-T100-PCLNR-68120-19 |
| Coupling Type | HSK |
| HSK-T Size | T100 |
| Clamping | 钩爪式 |
| Insert | CN19 |
| Direction of Tool | Right-hand |

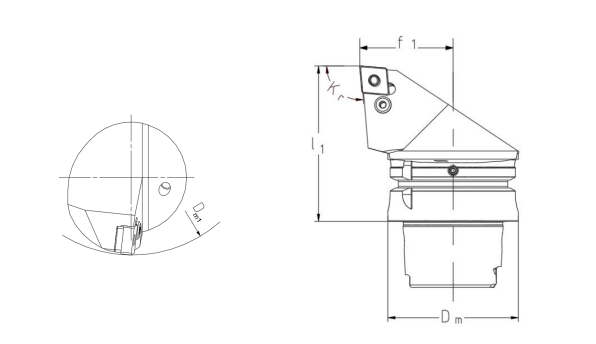

| Approach angle Kr | 95° |
| Dm | 100 |
| F1 | 68 |
| L1 | 120 |
| γ | -6° |
| λ | -6° |
| Weight (kg) | 6.6 |
| ISO Insert | CN.. 1906.. |
| Coupling Type | HSK |
|---|---|
| HSK-T Size | T100 |
| Clamping | 钩爪式 |
| Insert | CN19 |
| Direction of Tool | Right-hand |
| Approach angle Kr | 95° |
| Dm | 100 |
| F1 | 68 |
| L1 | 120 |
| Y | -6° |
| λ | -6° |
| Weight m (kg) | 6.6 |
| ISO Insert | CN.. 1906.. |
