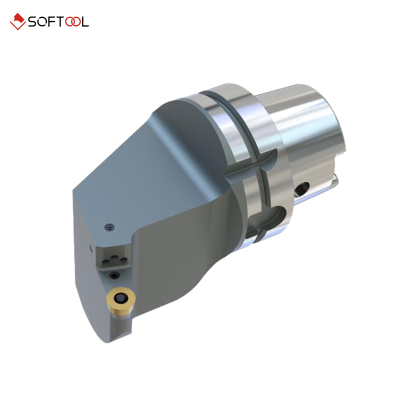

HSK-T100-PRSCR-70140-16C
● For turning the external of the workpiece
● Three clamping types, available in rough machiningsemi-finishing , finishing machining
● Out-machine tool adjustment, can be used inautomatic mechanical equipment
● 通配市面上ISO标准刀片
● Support non-standardcustomization
| Specification | Value |
|---|---|
| Ordering Code | HSK-T100-PRSCR-70140-16C |
| Coupling Type | HSK |
| HSK-T Size | T100 |
| Clamping | 钩爪式 |
| Insert | RC16 |
| Direction of Tool | Right-hand |
| Approach angle Kr | 55° |
| Dm | 100 |
| Dmin | 500 |
| F1 | 70 |
| L1 | 140 |
| γ | 0° |
| λ | 0° |
| Weight (kg) | 6.84 |
| ISO Insert | RC..1606.. |
| Additional Functions | C |
| Coupling Type | HSK |
|---|---|
| HSK-T Size | T100 |
| Clamping | 钩爪式 |
| Insert | RC16 |
| Direction of Tool | Right-hand |
| Approach angle Kr | 55° |
| Dm | 100 |
| Dmin | 500 |
| F1 | 70 |
| L1 | 140 |
| Y | 0° |
| λ | 0° |
| Weight m (kg) | 6.84 |
| ISO Insert | RC..1606.. |
| Additional Functions | C |
