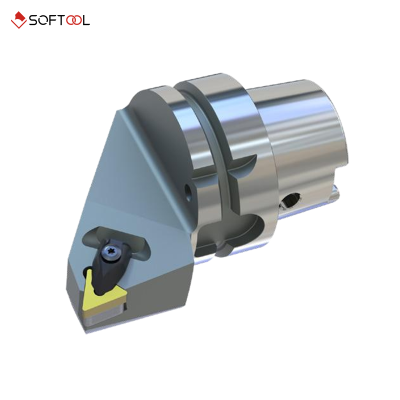

HSK-T40-DTJNR-27060-22
● For turning the external of the workpiece
● Three clamping types, available in rough machiningsemi-finishing , finishing machining
● Out-machine tool adjustment, can be used inautomatic mechanical equipment
●Match the lSO standard insert on the market
● Support non-standardcustomization
| Specification | Value |
|---|---|
| Ordering Code | HSK-T40-DTJNR-27060-22 |
| Coupling Type | HSK |
| HSK-T Size | T40 |
| Clamping | Platen |
| Insert | TN22 |
| Direction of Tool | Right-hand |
| Approach angle Kr | 93° |

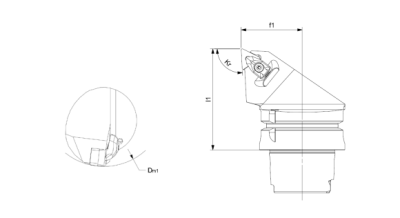

| F1 Size | 27 |
| L1 Size | 60 |
| Dm | 40 |
| Dm1 | 110 |
| γ | -6° |
| λ | -6° |
| Weight (kg) | 0.5 |
| ISO Insert | TN..2204.. |
| Coupling Type | HSK |
|---|---|
| HSK-T Size | T40 |
| Clamping | Platen |
| Insert | TN22 |
| Direction of Tool | Right-hand |
| Approach angle Kr | 93° |
| F1 Size | 27 |
| L1 Size | 60 |
| Dm | 40 |
| Dm1 | 110 |
| Y | -6° |
| λ | -6° |
| Weight m (kg) | 0.5 |
| ISO Insert | TN..2204.. |
