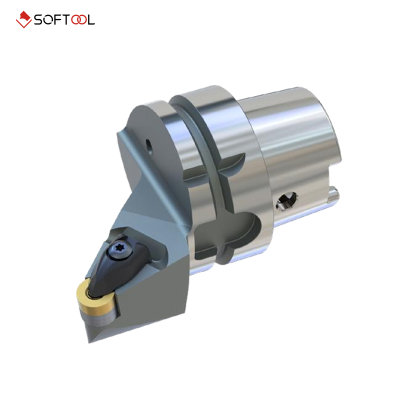

HSK-T50-DRSNR-35070-12
● For turning the external of the workpiece
● Three clamping types, available in rough machiningsemi-finishing , finishing machining
● Out-machine tool adjustment, can be used inautomatic mechanical equipment
● 通配市面上ISO标准刀片
● Support non-standardcustomization
| Specification | Value |
|---|---|
| Ordering Code | HSK-T50-DRSNR-35070-12 |
| Coupling Type | HSK |
| HSK-T Size | T50 |
| Clamping | Platen |
| Insert | RN12 |
| Direction of Tool | Right-hand |
| Approach angle Kr | 55° |

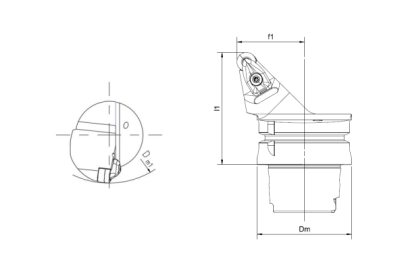

| Dm | 50 |
| Dmin | 110 |
| F1 | 35 |
| L1 | 70 |
| γ | -6° |
| λ | -6° |
| Weight (kg) | 0.70 |
| ISO Insert | RN..1204.. |
| Coupling Type | HSK |
|---|---|
| HSK-T Size | T50 |
| Clamping | Platen |
| Insert | RN12 |
| Direction of Tool | Right-hand |
| Approach angle Kr | 55° |
| Dm | 50 |
| Dmin | 110 |
| F1 | 35 |
| L1 | 70 |
| Y | -6° |
| λ | -6° |
| Weight m (kg) | 0.70 |
| ISO Insert | RN..1204.. |
