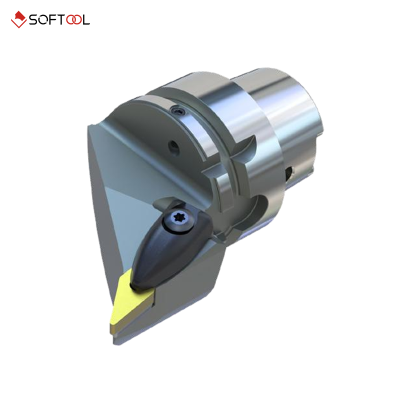

HSK-T80-DVJNL-55090-16
● For turning the external of the workpiece
● Three clamping types, available in rough machiningsemi-finishing , finishing machining
● Out-machine tool adjustment, can be used inautomatic mechanical equipment
●Match the lSO standard insert on the market
● Support non-standardcustomization
| Specification | Value |
|---|---|
| Ordering Code | HSK-T80-DVJNL-55090-16 |
| Coupling Type | HSK |
| HSK-T Size | T80 |
| Clamping | Platen |
| Insert | VN16 |
| Direction of Tool | Left-hand |
| Approach angle Kr | 93° |
| F1 Size | 55 |
| L1 Size | 90 |
| Dm | 80 |
| Dm1 | 100 |
| γ | 4° |
| λ | -13° |
| Weight (kg) | 2.1 |
| ISO Insert | VN.. 1604.. |
| Coupling Type | HSK |
|---|---|
| HSK-T Size | T80 |
| Clamping | Platen |
| Insert | VN16 |
| Direction of Tool | Left-hand |
| Approach angle Kr | 93° |
| F1 Size | 55 |
| L1 Size | 90 |
| Dm | 80 |
| Dm1 | 100 |
| Y | 4° |
| λ | -13° |
| Weight m (kg) | 2.1 |
| ISO Insert | VN.. 1604.. |
