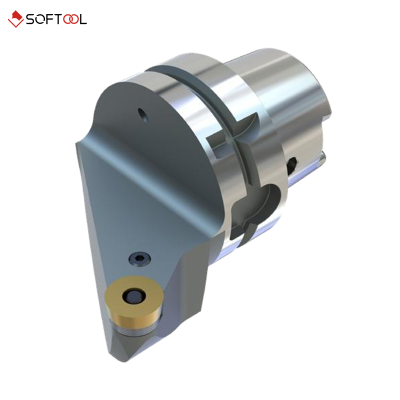

HSK-T80-PRSCL-55090-20
● For turning the external of the workpiece
● Three clamping types, available in rough machiningsemi-finishing , finishing machining
● Out-machine tool adjustment, can be used inautomatic mechanical equipment
● 通配市面上ISO标准刀片
● Support non-standardcustomization

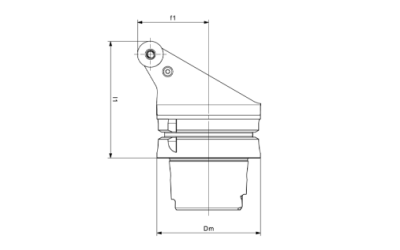

| Specification | Value |
|---|---|
| Ordering Code | HSK-T80-PRSCL-55090-20 |
| Coupling Type | HSK |
| HSK-T Size | T80 |
| Clamping | 钩爪式 |
| Insert | RC20 |
| Direction of Tool | Left-hand |
| Approach angle Kr | 55° |
| Dm | 80 |
| F1 | 55 |
| L1 | 90 |
| γ | 0° |
| λ | 0° |
| Weight (kg) | 2.45 |
| ISO Insert | RC.. 2006.. |
| Coupling Type | HSK |
|---|---|
| HSK-T Size | T80 |
| Clamping | 钩爪式 |
| Insert | RC20 |
| Direction of Tool | Left-hand |
| Approach angle Kr | 55° |
| Dm | 80 |
| F1 | 55 |
| L1 | 90 |
| Y | 0° |
| λ | 0° |
| Weight m (kg) | 2.45 |
| ISO Insert | RC.. 2006.. |
