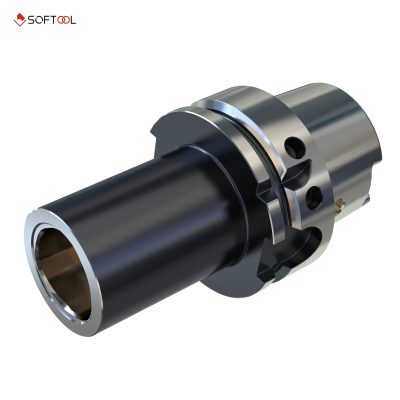

HSK100A-PSC50-100M
•Stronger transmission torque and stabilitywith PSC interface
•Modular structure of holder
• More easy to maintain
• Prolong the service life
•Provide quick-changefunction

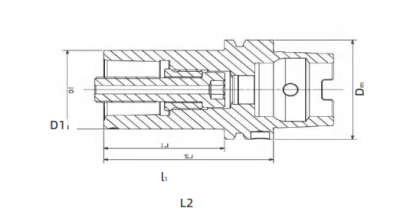

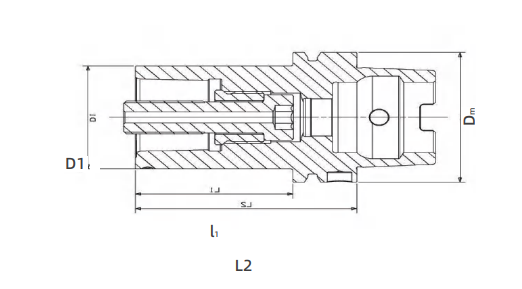

| Specification | Value |
|---|---|
| Ordering Code | HSK100A-PSC50-100M |
| Primary Interface | HSK100A |
| Adapter Interface | PSC50 |
| Effective Length | 100 |
| Format | M（标准款） |
| Dm (mm) | 100 |
| D1 (mm) | 50 |
| L1 (mm) | 71 |
| L2 (mm) | 100 |
| Weight (kg) | 3.02 |
| Coupling Type | HSK100A |
|---|---|
| Adapter Interface | PSC50 |
| Effective Length | |
| Format | M（标准款） |
| Dm | 100 |
| D1 | 50 |
| L1 | 71 |
| L2 | 100 |
| Weight m (kg) | 3.02 |
