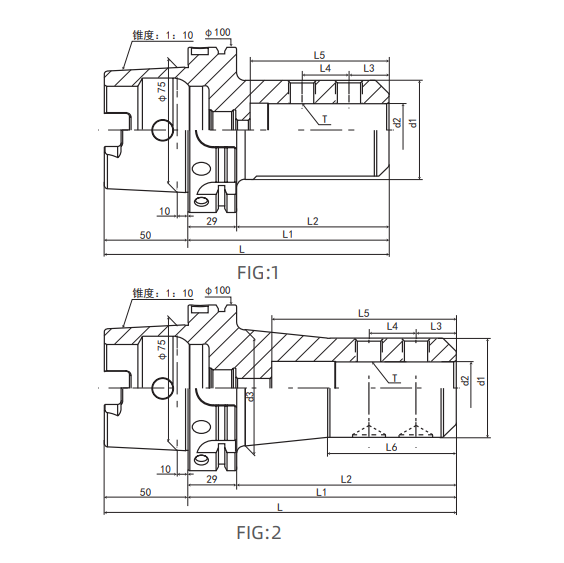

Home/General Tool Holder/HSK Chuck Series/HSK100A-SLN20-250 🔍 HSK100A-SLN20-250 Product Inquiry Description Additional Information Specification Value Ordering Code HSK100A-SLN20-250 Product Type General Tool Holder Shank size HSK100A 功能代号 SLN 刀杆直径 20 Effective Length 250 L 300 L1 250 L2 221 L3 25 L4 20 L5 110 L6 60 d1 45 d2 20 d3 50 T M12 Fig 2 Product Type General Tool Holder Shank size HSK100A 功能代号 SLN 刀杆直径 Effective Length 250 L 300 L1 250 L2 221 L3 25 L4 20 L5 110 L6 60.0 d1 45 d2 20 d3 50.0 T M12 Fig 2 Related Products BT50-C32-135General Tool Holder, BT Chuck Series BT40-C25-135General Tool Holder, BT Chuck Series BT50-C42-200General Tool Holder, BT Chuck Series BT40-C32-200General Tool Holder, BT Chuck Series
Specification Value Ordering Code HSK100A-SLN20-250 Product Type General Tool Holder Shank size HSK100A 功能代号 SLN 刀杆直径 20 Effective Length 250 L 300 L1 250 L2 221 L3 25 L4 20 L5 110 L6 60 d1 45 d2 20 d3 50 T M12 Fig 2 Product Type General Tool Holder Shank size HSK100A 功能代号 SLN 刀杆直径 Effective Length 250 L 300 L1 250 L2 221 L3 25 L4 20 L5 110 L6 60.0 d1 45 d2 20 d3 50.0 T M12 Fig 2
