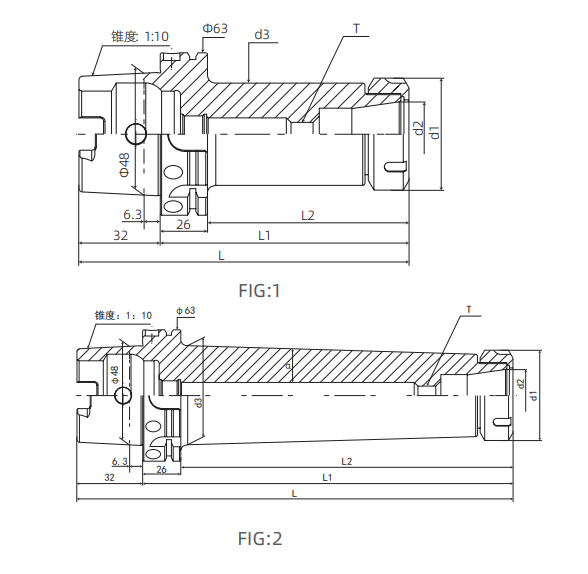

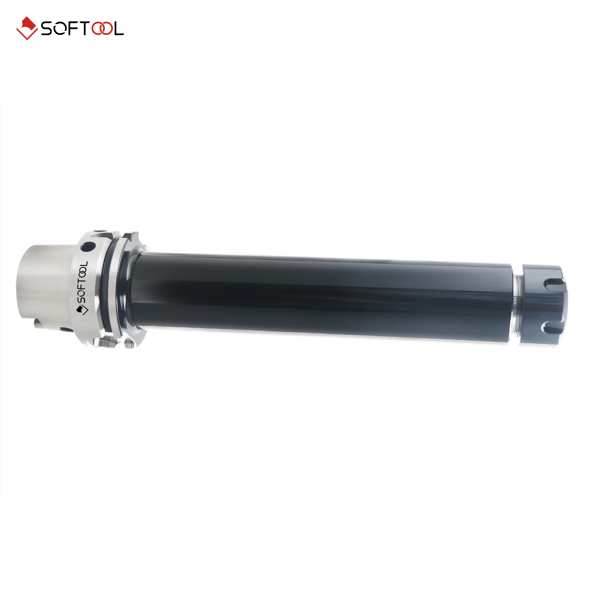

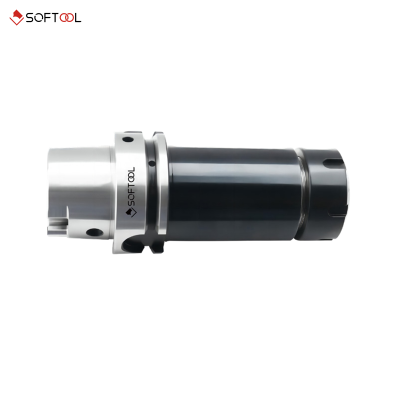

Home/General Tool Holder/HSK Chuck Series/HSK63A-ER25-125 🔍 HSK63A-ER25-125 Product Inquiry Description Additional Information Specification Value Ordering Code HSK63A-ER25-125 Product Type General Tool Holder Shank size HSK63A Collect Type ER Collect Model 25 Effective Length 125 L 157 L1 125 L2 99 d1 42 d2 25 d3 42 T M18*1.5P 夹持范围 (Range) 2-16 Weight (kg) 1.5 Shank size HSK63A Collect Type ER Collect Model 25 Effective Length 125 Product Type General Tool Holder L 157 L1 125 L2 99 d1 42 d2 25 d3 42 T M18*1.5P Clamping Range 2-16 Weight m (kg) 1.5 Related Products BT40-C32-250General Tool Holder, BT Chuck Series BT50-C42-200General Tool Holder, BT Chuck Series BT50-C32-200General Tool Holder, BT Chuck Series BT50-C32-110General Tool Holder, BT Chuck Series
Specification Value Ordering Code HSK63A-ER25-125 Product Type General Tool Holder Shank size HSK63A Collect Type ER Collect Model 25 Effective Length 125 L 157 L1 125 L2 99 d1 42 d2 25 d3 42 T M18*1.5P 夹持范围 (Range) 2-16 Weight (kg) 1.5 Shank size HSK63A Collect Type ER Collect Model 25 Effective Length 125 Product Type General Tool Holder L 157 L1 125 L2 99 d1 42 d2 25 d3 42 T M18*1.5P Clamping Range 2-16 Weight m (kg) 1.5
