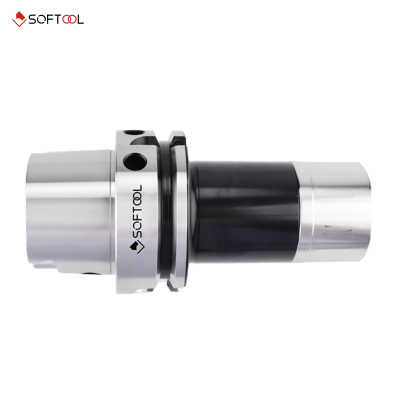

HSK63A-GSK10-70

HSK63A-GSK10-70

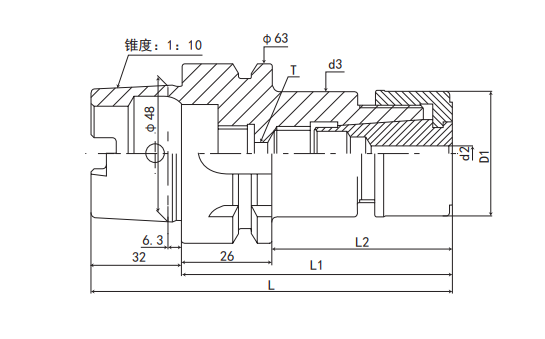

HSK63A-GSK10-70 technical drawing

Specification Value
Ordering Code HSK63A-GSK10-70
Product Type General Tool Holder
柄部 (Handle) HSK63A
Shank size HSK63A
Collect Type GSK
Collect Model 10
Effective Length 70
L 102
L1 70
L2 44
D1 27.5
d2 2-10mm
d3 28
T M10*1.0P
Weight (kg) 1.00
Product Type

General Tool Holder
Shank size

HSK63A
Collect Type

GSK
Collect Model

10
Effective Length

L

102
L1

70
L2

44
D1

27.5
d2

2-10mm
d3

28
T

M10*1.0P
Weight m (kg)

1.00
