HSK63A-SLN25-160
HSK63A-SLN25-160
  1. HSK63A-SLN25-160
  2. HSK63A-SLN25-160

HSK63A-SLN25-160

HSK63A-SLN25-160

Specification Value
Ordering Code HSK63A-SLN25-160
Product Type General Tool Holder
Shank size HSK63A
功能代号 SLN
刀杆直径 25
Effective Length 160
L 192
L1 160
L2 134
L3 24
L4 25
L5 120
L6 65
d1 50
d2 25
d3 55
T M12

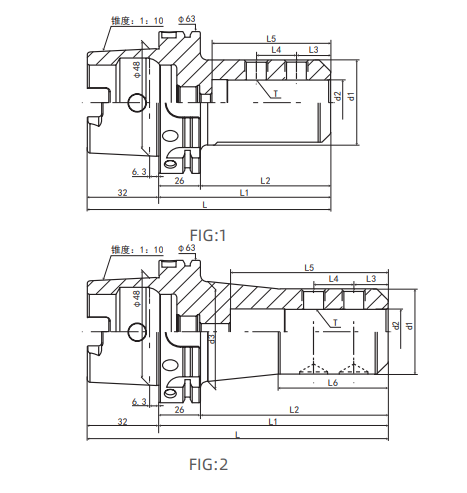

Fig 2
Weight (kg) 3.50
Product Type

General Tool Holder
Shank size

HSK63A
功能代号

SLN
刀杆直径

25
Effective Length

L

192
L1

160
L2

134
L3

24
L4

25
L5

120
L6

65.0
d1

50
d2

25
d3

55.0
T

M12
Fig

2
Weight m (kg)

3.5
