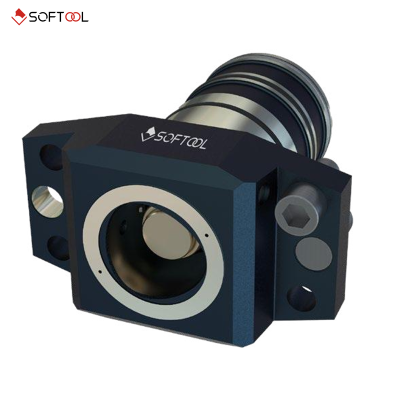

PSC40-NCHYD-05625M
• Used with tools of PSC interface
• Reailize the exchange of left andright hand tools
• Cam locking device, make changing thetool timely
| Specification | Value |
|---|---|
| Ordering Code | PSC40-NCHYD-05625M |
| Adapter Type | CHYD |
| Direction of Tool | 不分左右 |
| Format | M |
| PSC 尺寸 | PSC40 |
| b2 | 48 |
| Dm | 42 |
| Dm min | 260 |
| H2 | 92 |
| H21 | 56 |
| L2 | 74 |
| L1 | 25 |
| L3 | 10 |
| L4 | 22 |
| a21 | 15° |
| a22 | 11° |
| Product Type | PSC Clamping Unit |
|---|---|
| Coupling Type | PSC40 |
| Product Category | CHYD |
| Direction of Tool | 不分左右 |
| Format | M |
| b2 | 48 |
| Dm | 42 |
| Dm min | 260 |
| h2 | 92 |
| h21 | 56 |
| L2 | 74 |
| L1 | 25 |
| L3 | 10 |
| L4 | 22 |
| a21 | 15° |
| a22 | 11° |
