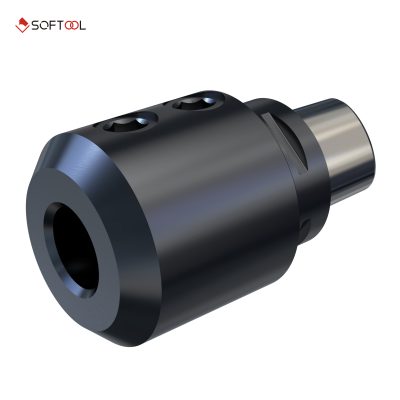

PSC63-SLN-40-100
•Stronger transmission torque and stabilitywith PSC interface
•Modular structure of holder
• More easy to maintain
• Prolong the service life
•Provide quick-changefunction
| Specification | Value |
|---|---|
| Ordering Code | PSC63-SLN-40-100 |
| Primary Interface | PSC63 |
| Adapter Interface | SLN |
| Clamping Hole Size | 40 |
| Effective Length | 100 |

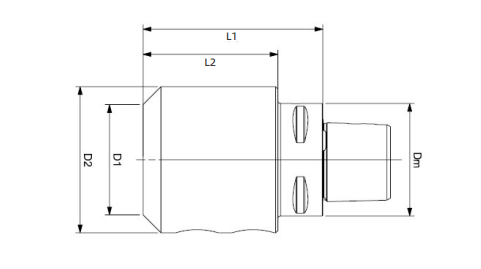

| Dm | 63 |
| D1 | 74 |
| D2 | 90 |
| L1 | 100 |
| L2 | – |
| Weight (kg) | 3.7 |
| Coupling Type | PSC63 |
|---|---|
| Adapter Interface | SLN |
| Clamping Hole Size | 40 |
| Effective Length | |
| L1 | 100 |
| Dm | 63 |
| D1 | 74 |
| D2 | 90 |
| L2 | – |
| Weight m (kg) | 3.7 |
