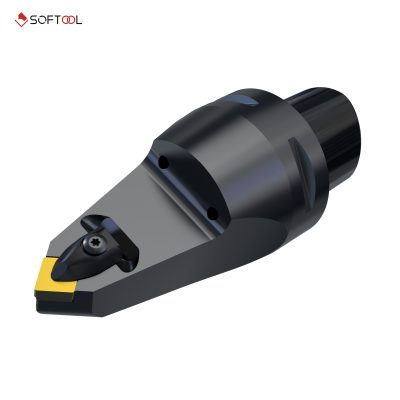

PSC80-DCMNN-00150-16

PSC80-DCMNN-00150-16

  • For turning the external of the workpiece
  • Three clamping types, available in rough machiningsemi-finishing , finishing machining
  • Out-machine tool adjustment, can be used inautomatic mechanical equipment
  • Match the lSO standard insert on the market
  • Support non-standardcustomization
PSC80-DCMNN-00150-16-description
Specification Value
Ordering Code PSC80-DCMNN-00150-16
Product Type External Turning Tool
Coupling Type PSC80
Clamping Platen
Direction of Tool Null
Approach angle Kr 50°
Insert CN16
ISO Insert CN..1606..
Dm (mm) 80
F1 (mm) 0
L1 (mm) 150
Y -6°
λ -6°
Weight (kg) 4.0
Product Type

External Turning Tool
Coupling Type

PSC80
Clamping

Platen
Insert

CN16
Approach angle Kr

50°
Direction of Tool

Null
Dm

80
F1

0
L1

150
Y

-6°
λ

-6°
Weight m (kg)

4.0
ISO Insert

CN..1606..
