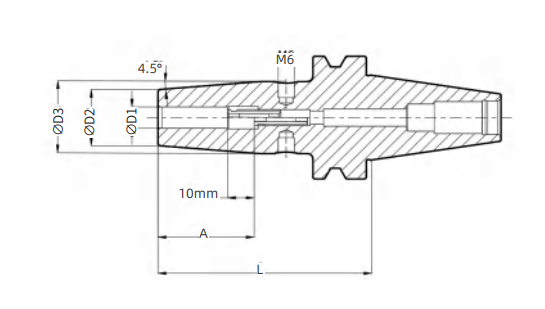

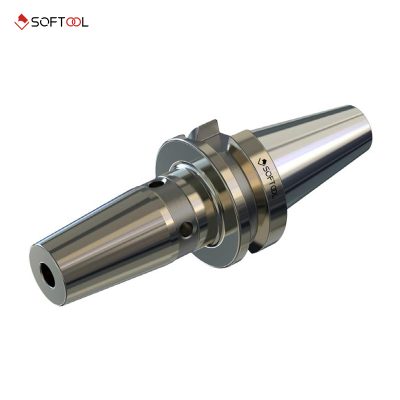

Home/Shrink-ft Chuck/General Purpose/BGPBT30AST16080M 🔍 BGPBT30AST16080M The shrink-fit chuck has a thread balance hole, which can be direct-ly assembled with a balance screw for dynamic balance adjustment For drilling, reaming, boring, milling, and other cutting machining Product Inquiry Description Additional Information Runout < 0.003mm Balancing Grade: G2.5at 25,000 rpmor Umax <1g·mm With adjustable axial length Specification Value Ordering Code BGPBT30AST16080M Product Type General Purpose Coupling Type BT30A Chuck Type Shrink-ft Chuck Clamping Hole Diameter 16 Effective Length 80 Format Metric D1 (mm) 16 D2 (mm) 27 D3 (mm) 34 L (mm) 80 A (mm) 50 Coolant Set Screw M12 Weight (kg) 0.64 Flange Type Automatic change tool with center cooling hole L1 80 Chuck Type Shrink-ft Chuck D3 34.0 Coupling Type BT30A Format Metric Effective Length 80 D1 16 G M12 Weight m (kg) 0.64 Clamping Hole Diameter 16 D2 27.0 A 50.0 Product Type General Purpose Related Products BGPBT40AST03120M¹Shrink-ft Chuck, General Purpose BGPBT30AST06060M²Shrink-ft Chuck, General Purpose BGPBT30AST12080M²Shrink-ft Chuck, General Purpose BGPBT30AST08080MShrink-ft Chuck, General Purpose
