SK40-C32-200
SK40-C32-200
  1. SK40-C32-200
  2. SK40-C32-200

SK40-C32-200

SK40-C32-200

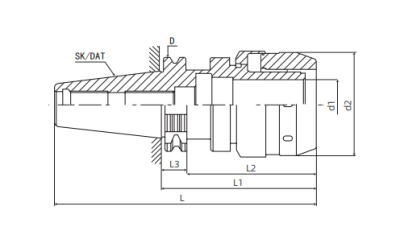

Specification Value
Shank size SK40
Collect Type C
Collect Model 32
Effective Length 200
L 301.75
L1 200
L2 181
L3 19.1
d1 32
d2 68
D 97.5
Clamping Range 3 4 5 6 8 10 12 14 16 18 20 22 24 25
Shank size

SK40
Collect Type

C
Collect Model

32
Effective Length

L

301.75
L1

200
L2

181
L3

19.1
d1

32
d2

68
D

97.5
Clamping Range

3 4 5 6 8 10 12 14 16 18 20 22 24 25
