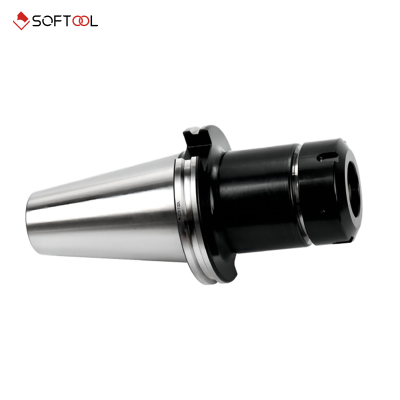

SK40-ER32-70
SK40-ER32-70
  1. SK40-ER32-70
  2. SK40-ER32-70

SK40-ER32-70

Specification Value
Shank size SK40
Collect Type ER
Collect Model 32
Effective Length 70

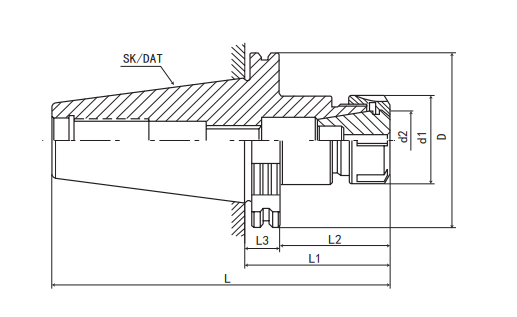

L 138.4
L1 70
L2 51
L3 19.1
d1 50
d2 32
D 63.55
Clamping Range 2-20mm
Weight (kg) 1.60
Shank size

SK40
Collect Type

ER
Collect Model

32
Effective Length

L

138.4
L1

70
L2

51
L3

19.1
d1

50
d2

32
D

63.55
Clamping Range

2-20mm
Weight m (kg)

1.60
