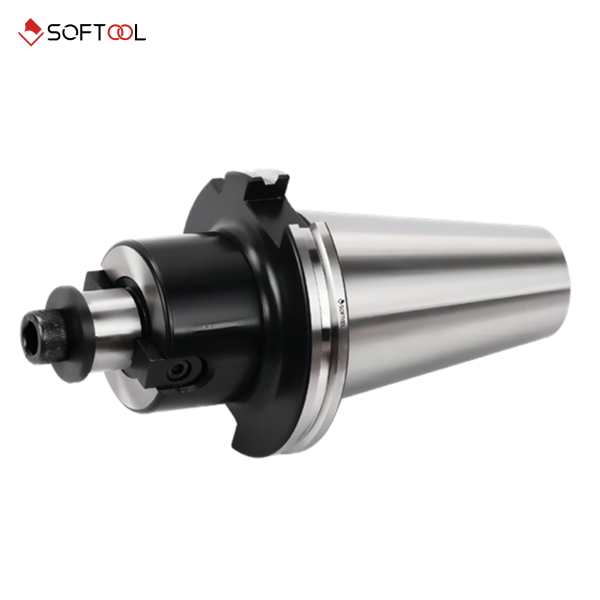

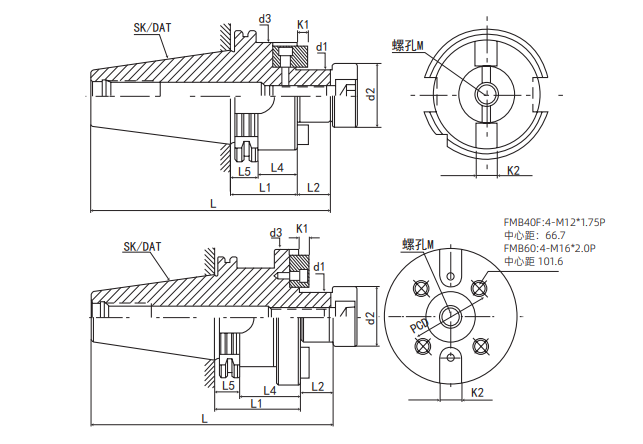

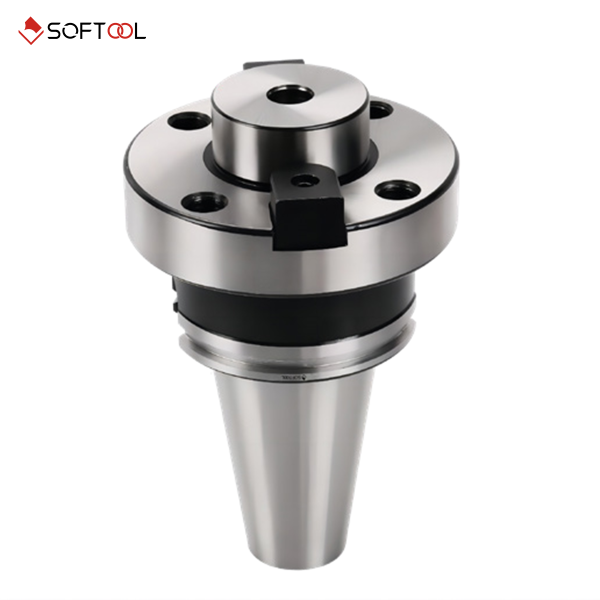

Home/General Tool Holder/SK Chuck Series/SK50-FMB27-250 🔍 SK50-FMB27-250 Product Inquiry Description Additional Information Specification Value Shank size SK50 功能代号 FMB 接口直径 27 Effective Length 250 L 313.4 L1 250 L2 20 L4 181 L5 – d1 27 d2 – d3 58 k1 5.8 k2 12 螺孔 M12*1.75P Shank size SK50 功能代号 FMB 接口直径 27 Effective Length 250 L 313.4 L1 250 L2 20 L4 181 L5 – d1 27 d2 – d3 58 K1 5.8 K2 12 M M12*1.75P Related Products BT50-C25-105General Tool Holder, BT Chuck Series BT40-C20-90General Tool Holder, BT Chuck Series BT30-C32-105General Tool Holder, BT Chuck Series BT40-C32-200General Tool Holder, BT Chuck Series
Specification Value Shank size SK50 功能代号 FMB 接口直径 27 Effective Length 250 L 313.4 L1 250 L2 20 L4 181 L5 – d1 27 d2 – d3 58 k1 5.8 k2 12 螺孔 M12*1.75P Shank size SK50 功能代号 FMB 接口直径 27 Effective Length 250 L 313.4 L1 250 L2 20 L4 181 L5 – d1 27 d2 – d3 58 K1 5.8 K2 12 M M12*1.75P
