SK50-PSC80-120M
•Stronger transmission torque and stabilitywith PSC interface
•Modular structure of holder
• More easy to maintain
• Prolong the service life
•Provide quick-changefunction

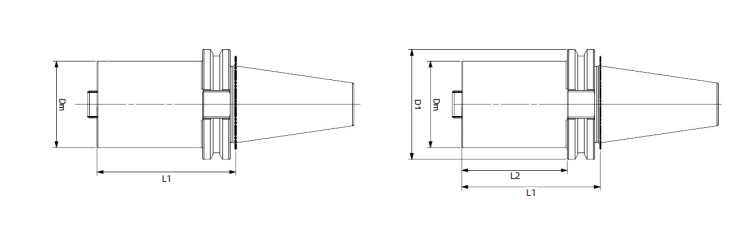

| Specification | Value |
|---|---|
| Ordering Code | SK50-PSC80-120M |
| Primary Interface | SK50 |
| Adapter Interface | PSC80 |
| Effective Length | 120 |
| Format | M（标准款） |
| Dm (mm) | 80 |
| D1 (mm) | 97.5 |
| L1 (mm) | 120 |
| L2 (mm) | 100.9 |
| Weight (kg) | 5.69 |
| Coupling Type | SK50 |
|---|---|
| Adapter Interface | PSC80 |
| Effective Length | |
| Format | M（标准款） |
| Dm | 80 |
| D1 | 97.5 |
| L1 | 120 |
| L2 | 100.9 |
| Weight m (kg) | 5.69 |
